Hydraulic Rotary Actuators are sophisticated devices that convert hydraulic energy into rotational motion, making them essential components in various industrial applications. Here is a comprehensive introduction to the types, uses, and advantages of Hydraulic Rotary Actuators:
Types of Hydraulic Rotary Actuators
Vane-Type Actuators: These actuators use vanes within a cylindrical housing to convert hydraulic fluid pressure into rotational motion. They are known for their high speed and compact design.
Piston-Type Actuators: These actuators use pistons to create rotational motion. They are typically used in applications requiring high force and precision.

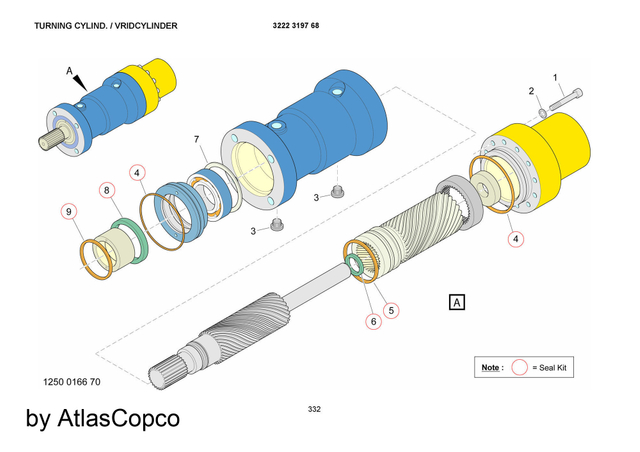

Helical Rotary Actuators: Known for their compact design and high torque output, these actuators are ideal for applications where space is limited but high torque is needed.
Rack and Pinion Actuators: These actuators use a rack and pinion mechanism to convert linear motion into rotational motion, suitable for applications requiring precise control.
Flange Mount and Foot Mount Actuators: These are mounting types of actuators that provide flexibility in installation, suitable for different industrial equipment and machinery.
Uses of Hydraulic Rotary Actuators
Industrial Machinery: Widely used in industrial machinery for tasks such as controlling the movement of heavy equipment, conveyors, and assembly lines.
Construction Equipment: Essential in construction equipment like bulldozers, cranes, and excavators for lifting and moving heavy objects.
Automotive Industry: Used in automotive systems for various functions, including steering and braking systems.
Marine Applications: Utilized in marine equipment for controlling valves, rudders, and other mechanical components.
Oil and Gas Industry: Employed in oil and gas operations for controlling valves and other machinery in remote and harsh environments.
Advantages of Hydraulic Rotary Actuators
High Torque Output: Hydraulic rotary actuators can produce high torque in a compact design, making them suitable for heavy-duty applications12.
Precision and Control: These actuators offer precise and easy control, even with high output torque, ensuring reliable and efficient operation2.
Durability and Reliability: Hydraulic actuators are rugged and suited for high-force applications, operating in pressures up to 4000 psi3.
Power Density: They have a high horsepower-to-weight ratio, making them more powerful than equivalent pneumatic motors3.
Versatility: Available in various types and configurations, they can be customized to fit specific application needs4.
Environmental Resistance: The internal components of these actuators are well-protected, making them dust-proof, dirt-proof, and moisture-proof.
