Designing heavy-duty mobile or industrial equipment presents a rigid conflict. You need massive torque outputs, but you must fit everything within severely restricted spatial footprints. Physical limits constantly push engineers to find denser power sources.
Converting linear cylinder motion to rotary motion via mechanical linkages is incredibly inefficient. This approach adds dead weight and consumes valuable physical space. It also introduces energy loss alongside long-term maintenance liabilities. Exposed cranks and linkages easily fall prey to environmental wear.
Direct-coupled fluid power designs solve this exact dilemma. They deliver maximum power-to-weight ratios and high stiffness right at the pivot point. In this guide, you will learn how to eliminate bulky electromechanical drivetrains. We will explore how matching internal geometry to your specific envelope doubles torque capacity.
Power Density: Hydraulic rotary actuators deliver immense torque in a smaller envelope compared to electric motors or linear-to-rotary linkage systems.
Mechanism Selection Matters: Rack-and-pinion, vane, and helical spline designs each offer distinct trade-offs between mechanical efficiency (70%–95%), internal leakage, and footprint.
Space Optimization: Features like hollow shaft designs eliminate the need for external couplings, further condensing the machine footprint.
Risk Management: Successful implementation requires precise calculation of holding torque, allowable backlash, and external bearing loads (radial/thrust).
Standardizing performance metrics requires a clear baseline. The ISO 5598 framework defines these mechanisms as devices engineered to convert fluid power into limited rotational movement. They achieve this without the severe spatial penalty of extending cylinder rods. You get pure rotational force right where you need it.
Many traditional machine designs rely on complex linear-to-rotary conversions. Engineers often use external crank arms, Scotch yokes, or gearboxes. These intermediate components inflate the machine footprint. By mounting directly to the rotational load, you embrace a true Limited Space Solution. Direct coupling simplifies the mechanical path. It strips away vulnerable failure points.
Operating environments heavily influence component lifespan. Exposed linear linkages attract dust, trap moisture, and suffer from abrasive particle buildup. A fully enclosed housing protects internal mechanisms from these hazards. This sealed approach provides much higher reliability in harsh construction or marine environments. Rigidity also improves significantly. Direct integration minimizes the flexible deflection you normally see in long mechanical linkages.
Choosing the right internal mechanism dictates your system performance. You must balance mechanical efficiency against your spatial constraints. Here is a breakdown of the three primary architectures.

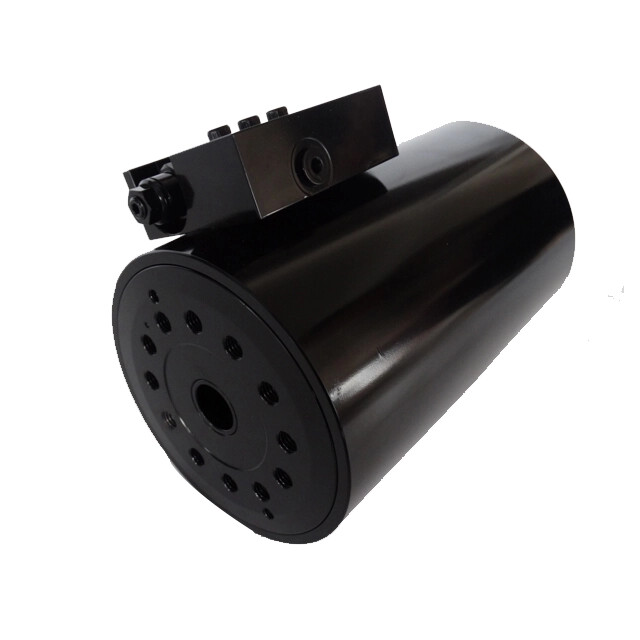

Engineers often refer to the helical spline as the Mini Hydraulic Rotator. It utilizes a highly clever three-step synchronized motion. First, fluid pressure forces a piston to move linearly. Second, axial piston displacement forces a splined sleeve to rotate. Finally, this sleeve turns the central output shaft.
Performance realities make this design highly desirable for specific jobs. It delivers extreme torque and impressive holding force inside an ultra-compact, constant-length cylinder shape. The physical envelope never changes during operation. However, there is a trade-off. Average mechanical efficiency hovers around 70 percent due to sliding friction. Despite this, it offers incredible holding capacity. Holding torque routinely doubles the active driving torque.
This design represents the gold standard for heavy industry. A linear piston pushes a horizontal rack. This rack features teeth geared directly to a central pinion. Fluid pushes the rack, and the pinion rotates.
The rack-and-pinion Hydraulic Rotary Actuator delivers exceptional volumetric efficiency. You experience zero internal leakage. These units easily handle extreme operating pressures up to 3,000 PSI. They also tolerate significant side and end loads. The trade-off involves footprint geometry. These actuators generally require a wider physical footprint than helical designs. Yet, torque predictability scales in a perfectly linear fashion.
Vane actuators excel in high-speed, high-cycle applications. Fluid pressure applies directly against one or two internal vanes attached to the output shaft. The simplicity is striking. They feature minimal moving parts. Often, the central shaft and vane represent the only moving element.
Performance metrics are exceptional for dynamic tasks. You can achieve zero backlash and secure 80 to 95 percent mechanical efficiency. Lifecycles frequently reach up to 25 million cycles. The primary trade-off involves rotation limits. A single vane allows approximately 280 degrees of rotation. Adding a double vane doubles your torque but halves the rotation angle. They are also more sensitive to internal bypassing than rack-and-pinion models.
Mechanism Type | Mechanical Efficiency | Internal Leakage | Best Application Profile |
|---|---|---|---|
Helical Spline | ~70% | Low to Moderate | Ultra-tight spaces, high holding force needs. |
Rack-and-Pinion | ~85% | Zero | Heavy-duty positioning, high pressure (3,000 PSI). |
Vane | 80% - 95% | Moderate (bypassing risk) | High cycle life, zero backlash robotics. |
Eliminating redundant components sits at the heart of modern fluid power design. Hollow shaft configurations completely change how we assemble machines. They allow the machine's driven shaft to pass directly through the center of the actuator housing.
This architecture provides massive space savings. It bypasses the need for external flexible couplings or rigid mounting brackets. Traditional coupling setups typically add several inches to the axial footprint. A hollow-shaft Compact Rotary Actuator absorbs the load shaft directly. You save weight, reduce assembly time, and shrink the machine profile.
Emerging designs push integration even further. We now see linear-rotary hybrid integrations. These combine double-acting linear cylinders and rotary motors into one single housing. They allow synchronized extension and rotation inside highly confined bays. Engineers frequently deploy these hybrids in telescopic booms, automated refuse trucks, and specialized robotic tooling.
Deploying compact power comes with specific engineering responsibilities. You must anticipate mechanical vulnerabilities before they cause field failures. Axial thrust loads represent a common blind spot in system design.
Address Axial (Thrust) Vulnerabilities: Vane actuators handle radial (side) loads exceptionally well. However, high axial loads push the central shaft lengthwise. This motion causes rapid internal seal wear. You must specify thrust protection. Internal thrust bearings or hardened collars successfully isolate the sensitive mechanism from external pushing forces.
Manage Holding Torque vs. Output Torque: You must clarify the difference between active driving force and static holding requirements. Driving torque moves the load. Holding torque resists external forces when the system powers down. Prevent mechanical drift during power-off states by ensuring the holding rating exceeds peak external gravitational pulls.
Analyze Internal Leakage Tolerances: Evaluate the required volumetric efficiency carefully. Fluid bypassing internal seals causes a load to slowly drop. Applications requiring precise, drift-free positioning should prioritize rack-and-pinion units. Highly sealed bladder variants also perform better here than standard vane types.
Backlash limits dictate operational precision. If your robotic arm requires millimeter precision at full extension, any internal gear slop will amplify at the tool tip. Specify zero-backlash designs early in the procurement phase to avoid expensive redesigns.
Moving from concept to procurement requires exact data. Manufacturers cannot size a system properly without knowing your specific operational boundaries. Follow this framework to define your needs clearly.
Determine the Duty Cycle: Establish if the machine runs continuous heavy-duty industrial tasks or intermittent mobile applications. Heat generation differs vastly between these two profiles.
Define Spatial Limits: Document the maximum allowable outer diameter (OD). Measure the overall length (OAL) at full mechanical stroke. Ensure you account for hose fittings and valving block additions.
Calculate Exact Load Requirements:
Determine operating pressure availability. A system running at 20 bar requires a vastly larger bore size than a system operating at 250 bar to produce identical torque.
Differentiate required breakout torque from running torque. Static friction always demands higher initial fluid force.
Calculate moments of inertia. Fast-moving heavy loads require specific braking valves to prevent internal mechanical shearing upon sudden stops.
Specify Fluid and Environment: Note ambient temperature extremes. Verify hydraulic fluid compatibility. Mineral oil reacts differently to seals than synthetic or water-glycol fluids. Finally, identify external washdown requirements to specify correct housing coatings.
Doubling torque while cutting space consumption in half is entirely achievable. The secret lies in matching the right internal geometry to your specific spatial envelope. Helical splines master tight cylindrical spaces. Rack-and-pinion gears conquer heavy loads and zero-drift needs. Vane models dominate high-speed continuous cycling.
Before moving forward, finalize your radial and axial load calculations. Define your acceptable backlash limits clearly. Gather your exact pressure availability parameters. Once you have these metrics, request technical data sheets and 3D CAD models from trusted manufacturers to validate your fit.
A: Yes. Through harmonic motion linkages, constant rotary speed can be converted to highly efficient linear motion. This setup offers maximum mechanical advantage at startup and natural, smooth deceleration at the end of the stroke.
A: A Scotch-Yoke is a specific mechanism providing a non-linear torque curve resembling a sine wave. It delivers maximum breakout torque at the beginning and end of the stroke (0° and 90°). This makes it ideal for breaking seated valves, though it remains less common in general robotics.
A: Specify designs engineered with zero internal leakage, such as rack-and-pinion or specialized bladder designs. You should also incorporate load-holding counterbalance valves directly into the actuator ports. This mechanically locks the fluid, holding the load secure during power losses.
