Hydraulic Vs Pneumatic Rotary Actuators: Which One Actually Saves You Money Long-Term?

Many procurement teams fall into a classic trap. They choose an actuator based solely on its initial purchase price. This shortsighted approach completely ignores ongoing energy consumption and lifecycle maintenance costs. In industrial machinery, rotary actuators perform a critical core function. They convert fluid or air pressure into rotational torque. This torque powers everything from small packaging lines to massive marine cranes. Pneumatic systems definitely offer a lower financial barrier to entry. However, selecting a high-quality Hydraulic Rotary Actuator fundamentally changes the long-term operational costs in heavy-duty or high-cycle applications.

We approach this engineering topic from an objective perspective. You will not find any "one size fits all" claims here. Every application demands a unique energy profile. You will learn the underlying physics of fluid power. We will explore the hidden costs of air leaks and extreme climates. By the end, you will understand exactly how to match the right technology to your specific load dynamics.

Key Takeaways

• Energy Efficiency: Pneumatic systems lose 50-60% of energy at the compressor stage; hydraulic systems lose only 10-15% at the pump.

• Force Density: Hydraulics operate at 3,000+ PSI, delivering up to 25x the force of similarly sized pneumatic units (typically 80-100 PSI).

• Hidden Costs: Invisible air leaks in pneumatic lines drive up utility bills, whereas hydraulic leaks are visible but require stringent environmental mitigation.

• Decision Rule: Choose pneumatic for high-speed, light-load, and clean environments; choose hydraulic for heavy loads, rigid positioning, and long-term energy savings.

The Long-Term Cost Reality: Why Pneumatic’s Low Initial Price is Deceiving

Engineers often compare these two systems using different fundamental physics. Pneumatic systems act primarily as energy accumulators. Compressors must run constantly to store compressed air inside large tanks. This setup functions much like a mechanical battery. You store energy over time to release it in quick, rapid bursts. Conversely, hydraulics act as rigid liquid driveshafts. A pump moves fluid directly against a piston or vane. This creates immediate, direct power transfer without continuous energy storage.

This fundamental difference severely impacts your monthly utility bill. The cost of generating compressed air is staggering. Industry baselines, including estimates from the US Department of Energy, reveal a harsh reality. Routine air leaks and compressor heat loss can waste 20 to 30 percent of your total generated capacity. You pay for electricity to compress air. Much of it simply hisses out of tiny pinholes across the factory floor. You cannot see these leaks. You rarely hear them over the factory noise. Yet, they drain your operational budget continuously.

Achieving a positive long-term return on investment requires a broader perspective. A hydraulic system demands a much higher initial investment. You must purchase a dedicated hydraulic power unit, heavy-duty hoses, and specialized proportional valves. The upfront invoice looks intimidating. However, this technology stabilizes your utility costs over a five to ten-year lifecycle. Continuous-duty cycles expose the inefficiency of compressed air. When you run a machine 24 hours a day, the 10 to 15 percent energy loss of a hydraulic pump easily beats the 60 percent loss of an air compressor.

Performance Matrix: Torque, Speed, and Precision for Rotary Motion

You cannot judge an actuator solely by its energy bill. Physical performance metrics dictate which technology actually works for your machine. We evaluate rotary motion across three critical dimensions: output force, speed, and positioning accuracy.

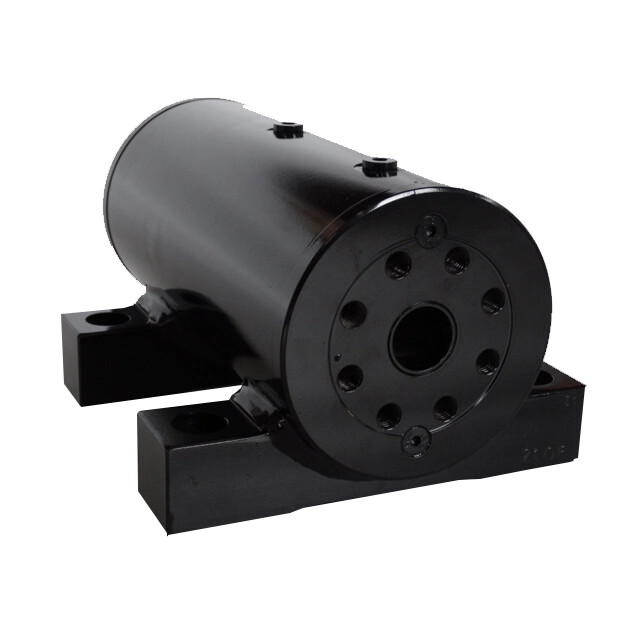

Output force reveals the starkest contrast. An Industrial Rotary Cylinder operates at extreme internal pressures. Standard industrial applications routinely see 3,000 to 5,000 PSI. This massive pressure delivers incredible force density. A compact hydraulic unit can fit into tight machine spaces while moving thousands of pounds. Pneumatic systems typically max out between 80 and 100 PSI. They physically cannot generate equivalent torque without expanding to impractical, massive sizes.

Speed and responsiveness tell a different story. Pneumatic systems excel here. Air is thin and moves rapidly through valves. If you need high-speed, light-load rapid cycling, air wins every time. Hydraulic fluid is thick and viscous. It accelerates slower. It simply cannot snap back and forth dozens of times per second. However, fluid viscosity provides an unmatched ability to move massive loads smoothly and steadily without jerking.

Positioning accuracy relies entirely on fluid dynamics. Hydraulic oil is essentially incompressible. When you close the valves, the oil locks the internal mechanism in place. This allows for rigid, exact holding positions. Air is highly compressible. When a load shifts, the air acts like a spring. This leads to mushy or drifting positions. You cannot precisely hold a heavy, variable load using trapped air.

Actuator Performance Comparison Chart

The Hidden Costs: Maintenance, Leaks, and Environmental Durability

Maintenance routines look vastly different for these two technologies. Both require preventative care, but they fail in completely different ways. You must prepare your maintenance team for the specific demands of the system you choose.

Pneumatic equipment demands rigorous ongoing air preparation. Ambient air contains moisture and particulate matter. Compressors squeeze this moisture into the lines. You must continuously drain condensate and replace inline filters. If you neglect air prep, moisture enters the actuator. This causes severe internal rusting. Rust flakes destroy internal seals rapidly. The system will fail prematurely, requiring complete replacement.

Hydraulic systems require an obsession with fluid cleanliness. Microscopic dirt particles destroy expensive servo valves. You must monitor filter indicators regularly. Furthermore, you must actively manage leak risks. Air leaks waste electricity, but they do not create safety hazards. Hydraulic fluid spills create immediate slip hazards. You must pay for spill cleanup, environmental mitigation, and replacement oil. The maintenance burden focuses on absolute containment and purity.

Extreme climates test the durability of both systems. Freezing environments easily defeat neglected air systems. Moisture trapped in the lines turns to ice. This blocks valves and causes catastrophic pressure drops. Proper hydraulic fluid maintains stable system efficiency even in extreme cold. Engineers can specify specialized low-temperature oil. This keeps heavy equipment moving smoothly during freezing winter conditions.

Application Decision Framework: Matching Tech to the Task

Technology selection requires practical common sense. You must align the physical traits of the actuator with the specific demands of your industry. Certain environments dictate the choice before you even calculate energy costs.

You should shortlist pneumatic equipment for specific, lightweight applications. Consider these scenarios:

• Packaging Lines: Cardboard boxes require rapid, light pushes. Air handles this perfectly.

• Pharmaceutical Cleanrooms: Regulatory compliance strictly forbids any risk of oil contamination.

• Food Processing: Raw ingredient handling demands absolute cleanliness. Even trace amounts of oil ruin entire batches.

• Pick-and-Place Automation: Moving small plastic parts rapidly across a conveyor relies on fast air bursts.

You should shortlist hydraulic equipment for brutal, heavy-duty applications. Consider these scenarios:

• Mining Operations: Crushing rocks requires massive, unstoppable force.

• Construction Machinery: An excavator requires a 360 Degree Rotation Actuator to move heavy dirt continuously. Pneumatic torque is physically insufficient here.

• Heavy Metal Fabrication: Bending thick steel plates demands rigid, precise, and immense pressure.

• Marine Environments: Ship steering systems require the unyielding lock of incompressible fluid against harsh ocean currents.

Both fluid power systems offer a distinct safety advantage over electrical alternatives. They provide inherently spark-free operation. This makes them significantly safer and cheaper to deploy in ATEX-rated hazardous environments. Explosion-proof electrical motors cost a fortune. Fluid systems operate safely surrounded by explosive gases or combustible dust.

Procurement Checklist: 4 Questions Before Requesting a Quote

Before you contact a supplier, you must audit your own facility. Purchasing the wrong technology forces costly retrofits down the line. Ask your engineering and maintenance teams these four critical questions.

1. What does your current infrastructure look like? Do you already have a massive, centralized air compressor humming on the factory floor? Adding one small air cylinder makes sense. However, if you lack sufficient air capacity, installing a dedicated Hydraulic Power Unit might prove more efficient.

2. What is your exact motion profile? Do you simply need a basic 90-degree Hydraulic Swing Cylinder for clamping metal parts? Or does your machine require continuous, heavy-duty rotation under immense strain? Define the rotation angle before specifying the unit.

3. How do the load dynamics behave? Is your load completely static? Does the center of gravity shift dramatically during rotation? Shifting loads pull and push unpredictably. They absolutely require the rigid, unyielding holding power of incompressible fluid.

4. What is your lifecycle horizon? Are you budgeting for a temporary one-year pilot project? If so, buy the cheapest air cylinder available. Are you standardizing a core machine line designed for a ten-year lifespan? If so, you must invest heavily upfront to minimize your decade-long energy usage.

Conclusion

True cost savings rarely appear on the initial purchase invoice. You find real financial efficiency only when you align the technology perfectly with your application's physical and cycle demands. Buying a cheap air cylinder for a heavy-duty task guarantees years of wasted electricity and constant breakdowns. Conversely, buying an expensive fluid power system for a lightweight packaging line wastes precious capital.

We encourage procurement teams and engineers to step onto the factory floor today. Audit your current equipment. Listen for the hiss of wasted air. Calculate how much your compressors run during idle machine hours. Consult with a specialized fluid power engineer to map out the true long-term ROI of upgrading your heavy machinery. Making an informed switch will protect your operational budget for years to come.

FAQ

Q: Are hydraulic systems safe in explosive environments?

A: Yes. They inherently eliminate the sparking risks associated with standard electric motors. Fluid power generates mechanical motion without high-voltage electrical contacts at the actuator level. This makes them an ideal, cost-effective solution for ATEX-rated hazardous zones.

Q: Can pneumatic actuators achieve precise 360-degree rotation?

A: While possible using rack-and-pinion or rotary vane designs, they struggle significantly with load-holding precision. Air is highly compressible. Because of this, pneumatic units suffer from "mushy" positioning and drift when subjected to varying external loads.

Q: How much energy is typically lost in a pneumatic system?

A: A standard system can easily lose up to 50-60% of its raw energy at the compressor stage alone. This massive heat and friction loss does not even factor in the additional waste caused by downstream line leaks.
